Weathervane Mount

$11.95

The Weathervanes come with your choice of 4 sided mount, deck mount, garden mount, or roof mount. But if you need to purchase an extra Weathervane Mount, buy it here! See usage and assembly tab below.

Clear

Product Features

Extra Weather Vane Mount for EZ Vane Weather Vanes

The Weathervanes come with your choice of deck mount, roof mount, post mount, garden mount, or 4 sided mount. But if you need to purchase an extra Weathervane Mount, buy it here!

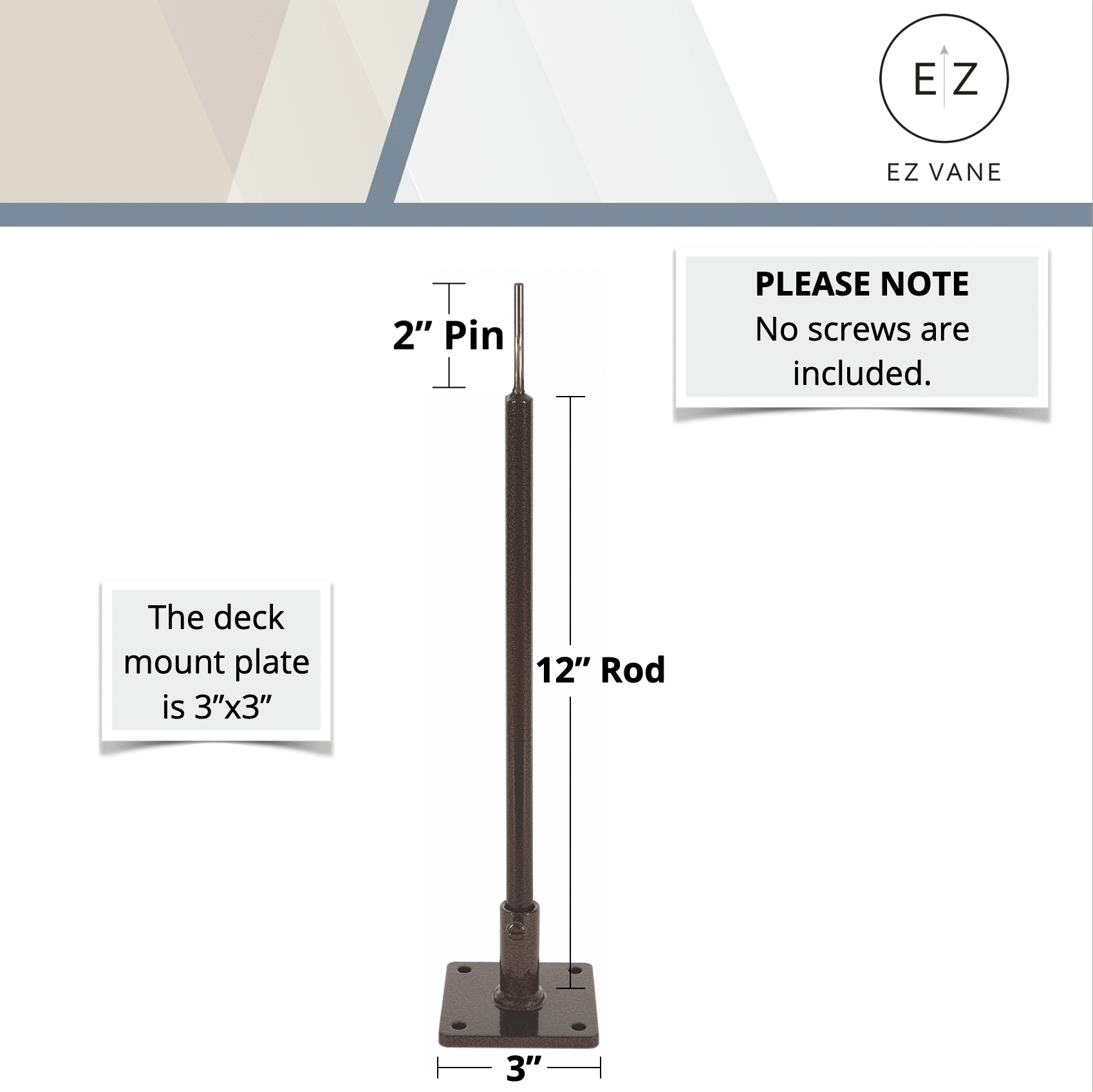

  • Deck Mount will mount to a flat board i.e. deck board. It is approx. 3″ x 3″ and includes the 12″ rod.

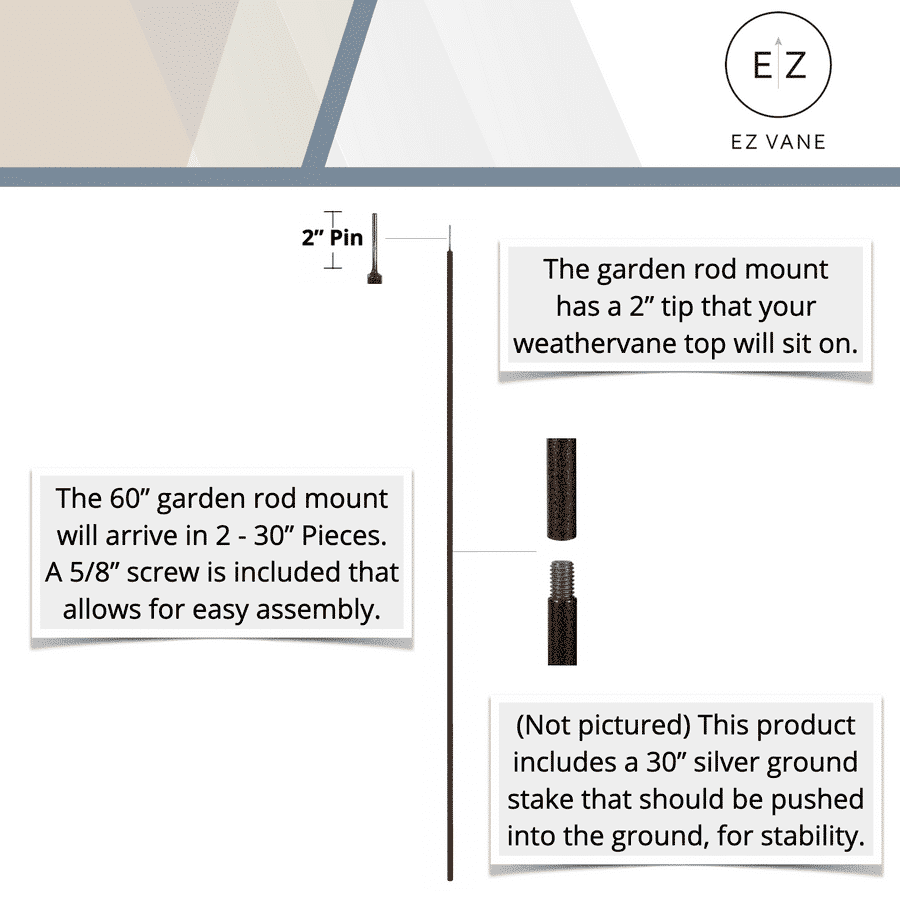

  • Garden Mount – 60″ mount includes stabilizing ground stake. The garden mount ships in two pieces and must be screwed together upon arrival.

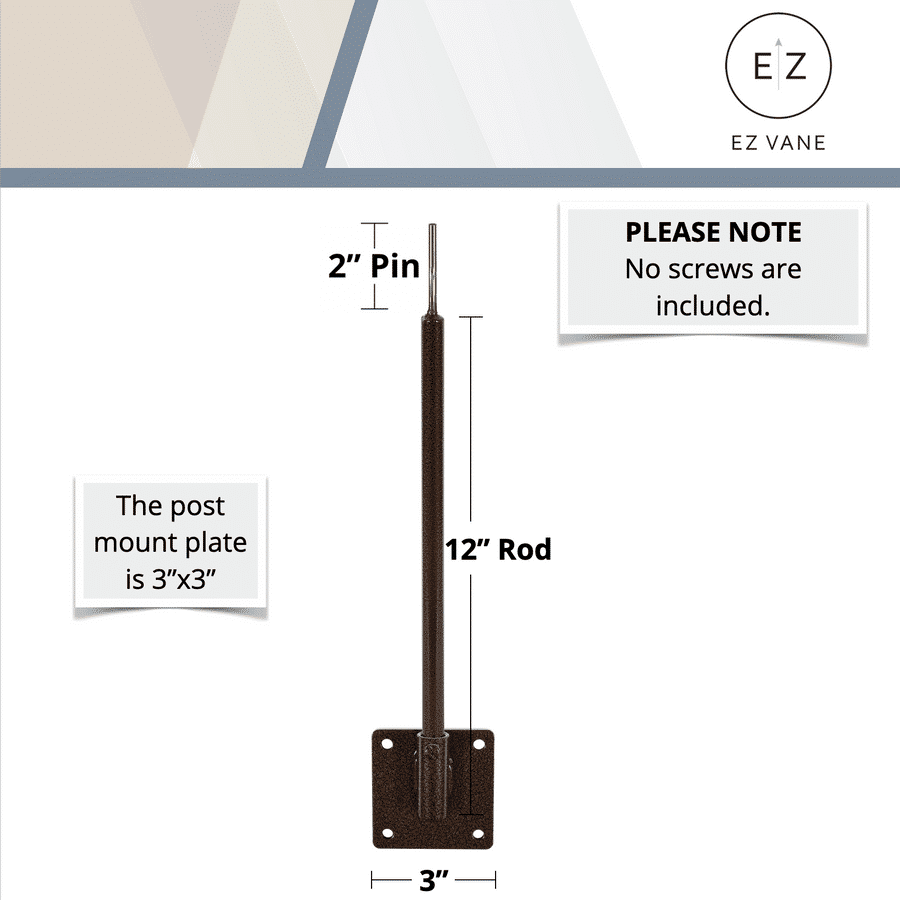

  • Post Mount or (side mount) will mount to the side of a fence of vertical board. It is approx. 3″x3″ and includes the 12″ rod.

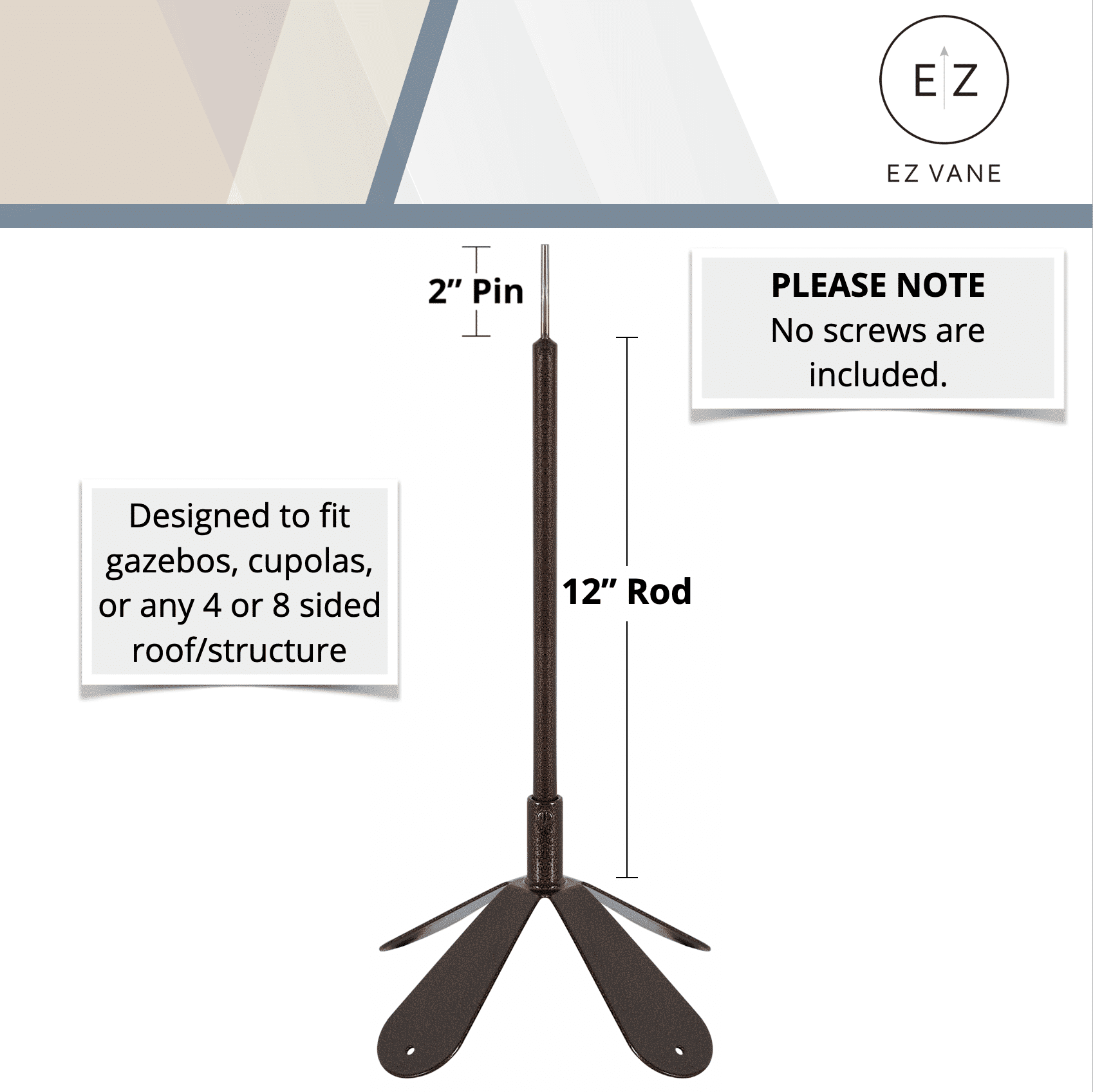

  • 4 Sided Mount is made for mounting to a 4 or 8 sided cupola or gazebo. This mount comes with a 12″ rod.

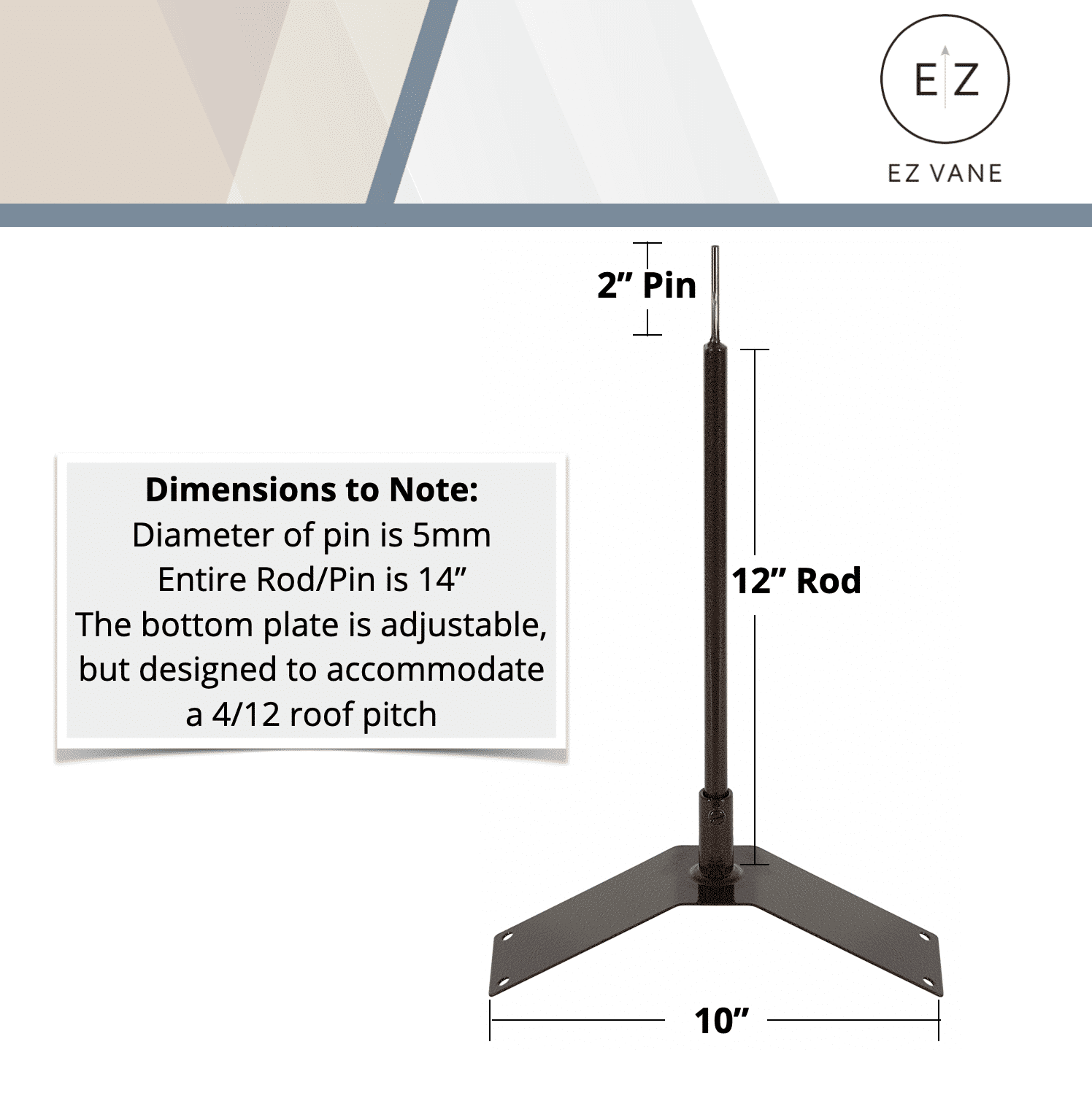

  • Roof Mount is adjustable, but is made to a 4/12 roof pitch. It includes a 12″ rod.
Back to Top

Brand

Accessories

Additional information

Weight 2.5 lbs
Select Mount

Deck Mount, Garden Mount, Post Mount, 4 Sided Mount, Roof Mount

Assembly

Diagram

  1. If optional 5/16″ x 3 ft. rod is included, drive the silver rod half way into the ground. Place the 60″ garden mount over top of the rod. If the silver rod is not included simply push the 60″ garden mount into the ground to desired height. (minimum of 12″ into the ground)
  2. Place the directional over the pole (approx. 6″ from the tip). Point the N to the north and tighten the screw that is located between the N and E.
  3. Slide the wind cups onto the pole with the ball bearing side down.
  4. Place the design top onto the pole.
MANUFACTURER’S NOTE:
When installing on a roof, deck, post or cupola mount, install your mount to the mounting surface. Place the short rod into the tubing of the mount. Tighten the set screw provided on the mount. Slide the directional (NSEW) over the tip of the rod. Set N to North and tighten the set screw. Place the wind cups over the tip of the rod ( bearing side facing DOWN). Then slide the top on your weather vane.
Maintenance
The manufacturer recommends that you place a few drops of light oil on the top of the pole periodically to ensure that the design top will turn freely.
If using a roof style mount, the manufacturer recommends that you ground your weather vane in case of a lightning strike. Please consult your township for local building codes.
This product has been clear coated for additional beauty and durability.
